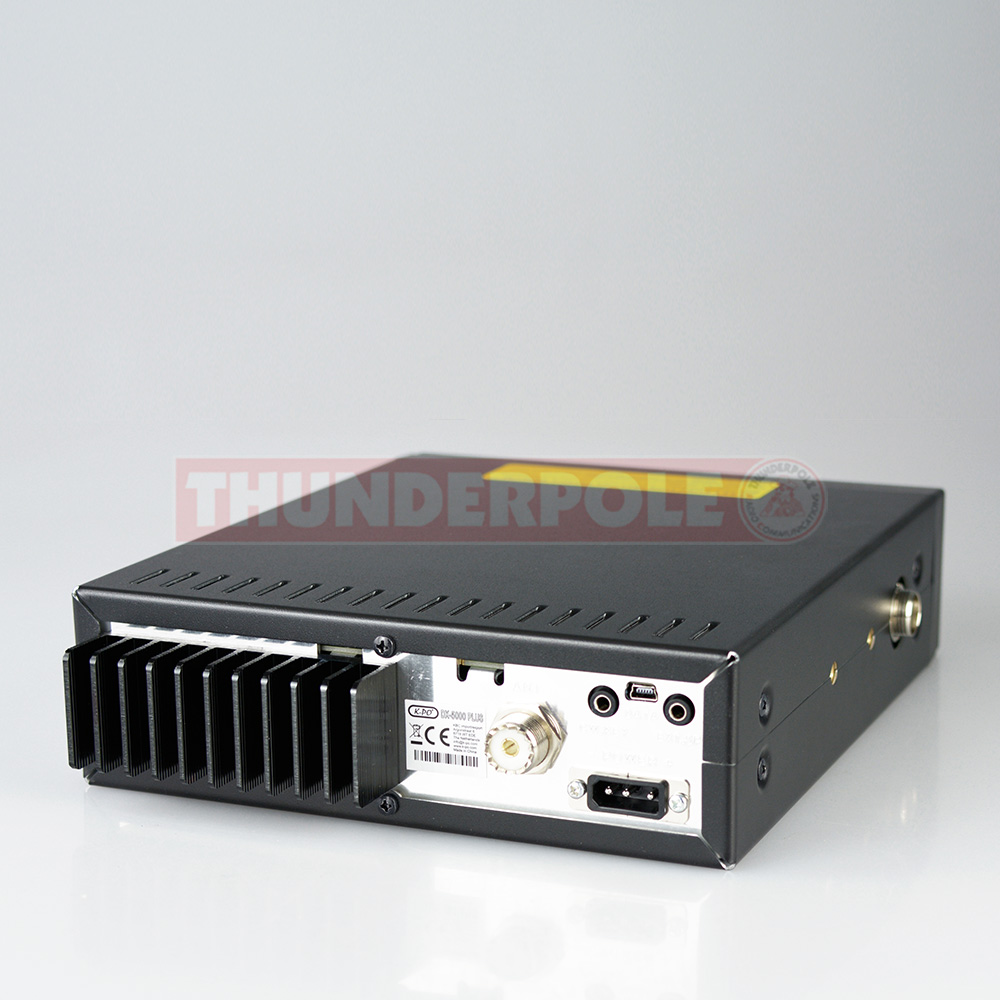

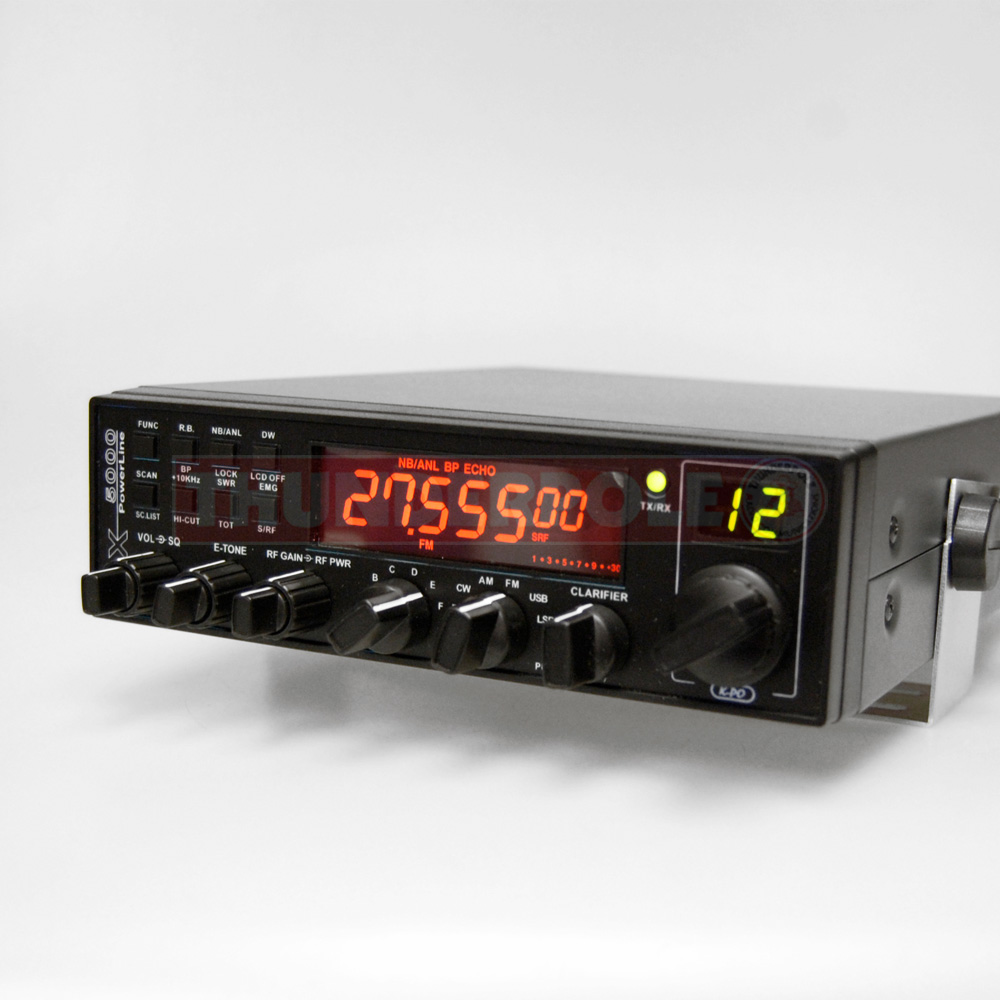

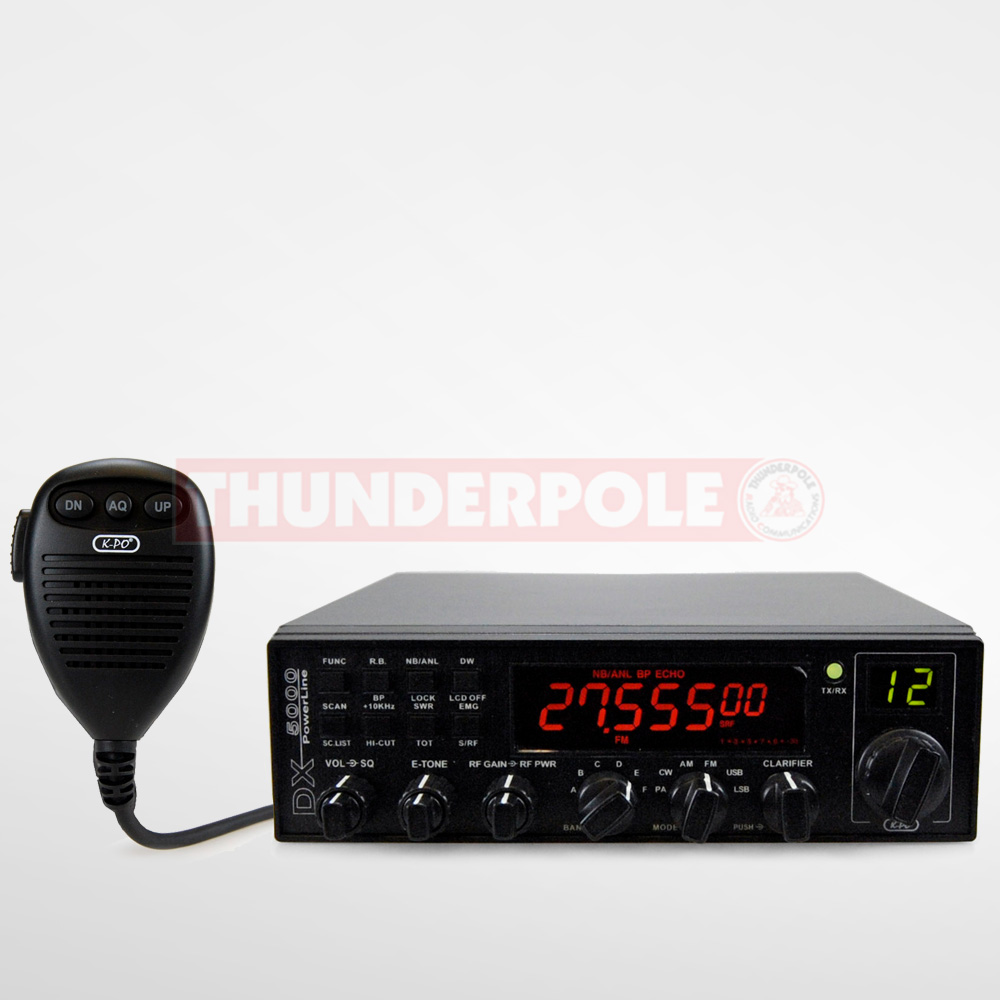

K-PO DX5000 Plus 10m Mobile Radio | Version 7.0


Ref:  01DX5000
Bar Code:  8718375100028
Brand:  K-PO

Weight:  1.91 kg

Availability:



Product information

The 6th generation K-PO DX-5000 is a fully featured amateur radio HF mobile transceiver, covers the 28 MHz frequency band reserved to Amateur Radio communication.

Inside the sleak black design is an impressive array of features, including: 40w FM/SSB output (12w AM), dual frequency and channel display, 6 programmable bands, echo, scan, PA facility, RF gain, dual watch, time-out timer, voltage display, roger bleep, adjustable power, noise blanker and ANL, built in SWR meter, hi-cut filter and input voltage protection.

The radio has 6 bands of 60 channels that can be programmed for export purposes from 25.615 - 30.105.

Version 6 - No cable and software required
Band selection access via buttons on radio.
1band = 28.000 - 29.700
2band = 25.615 - 28.305

Specifications

  • 28-30 MHz frequency range (expandable by software 25.615-30.105 MHz for export purposes)
  • Modes AM / FM / LSB / USB / CW / PA
  • Transmit power AM / FM / CW: 12W
  • SSB: 21 W (PEP)
  • Frequency steps 10 Hz / 100 Hz / 1 kHz / 10 kHz
  • RF control
  • Noise blanker and ANL function
  • Programmable controller Clarifier
  • S-Meter
  • Roger Beep
  • Output power continuously adjustable (for AM / FM)
  • Scan function
  • Echo function can be activated
  • Dual Watch
  • Built-in SWR meter
  • Display of the operating voltage of the display
  • SWR protection circuit in poor
  • Protection against excessive input voltage
  • +10kHz Switch
  • Reset function
  • Time-Out Timer
  • Hi-cut function
  • Emergency Call
  • Switchable keypad lock
  • Programmable via a PC
  • 3.5 mm jack for external speaker
  • CW side tone 300Hz - 3 adjustable kHz in 10 Hz steps
  • Socket for PA (Paging Speaker)
  • PL-antenna connection socket
  • Power supply 13.8V DC
  • Dimensions in mm 280 x 250 x 60
  • Weight 2 kg
