RG58 CU Coaxial Cable | Black | 100m Reel


Ref:  18005
Brand:  Thunderpole

Weight:  3.31 kg

Availability:



Product information

High quality low loss 50 Ohm coaxial cable suitable for most radio applications.

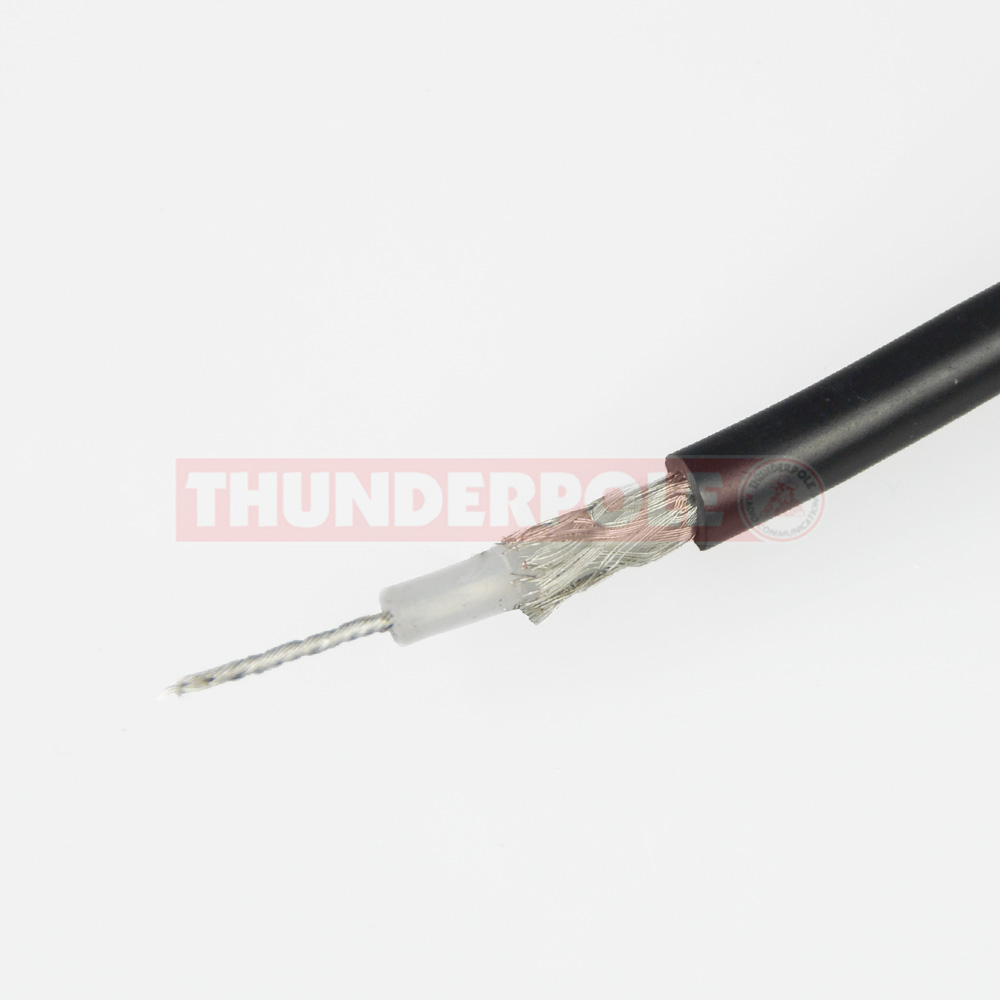

Stranded Tinned copper conductors, solid polyethylene insulation, tinned copper braided screen with PVC sheath.

Note: Use 6mm PL259's when attaching to radios and mounts.

Specifications

  • Conductor CSA: 0.48mm²
  • Conductor diameter: 19/0.18mmØ
  • Conductor Material: Tinned copper
  • Braid: 112/0.12mmØ
  • Braid material: Tinned copper
  • Cable diameter: 4.95mm
  • Dielectric: 2.95mmØ Solid P.E.
  • Screen OD: 3.3mm
  • Impedance: 50 ohms
  • Capacitance PF/M: 100
  • Velocity Factor - 66%
  • Colour: Black
  • Attenuation per 10 Meters
  • 10 MHz - 0.45dB
  • 50MHz - 1.3dB
  • 100MHz- 1.5dB
  • 200MHz - 2.5dB
  • 1 GHz - 5.6dB
  • CPR / ECA CLASS

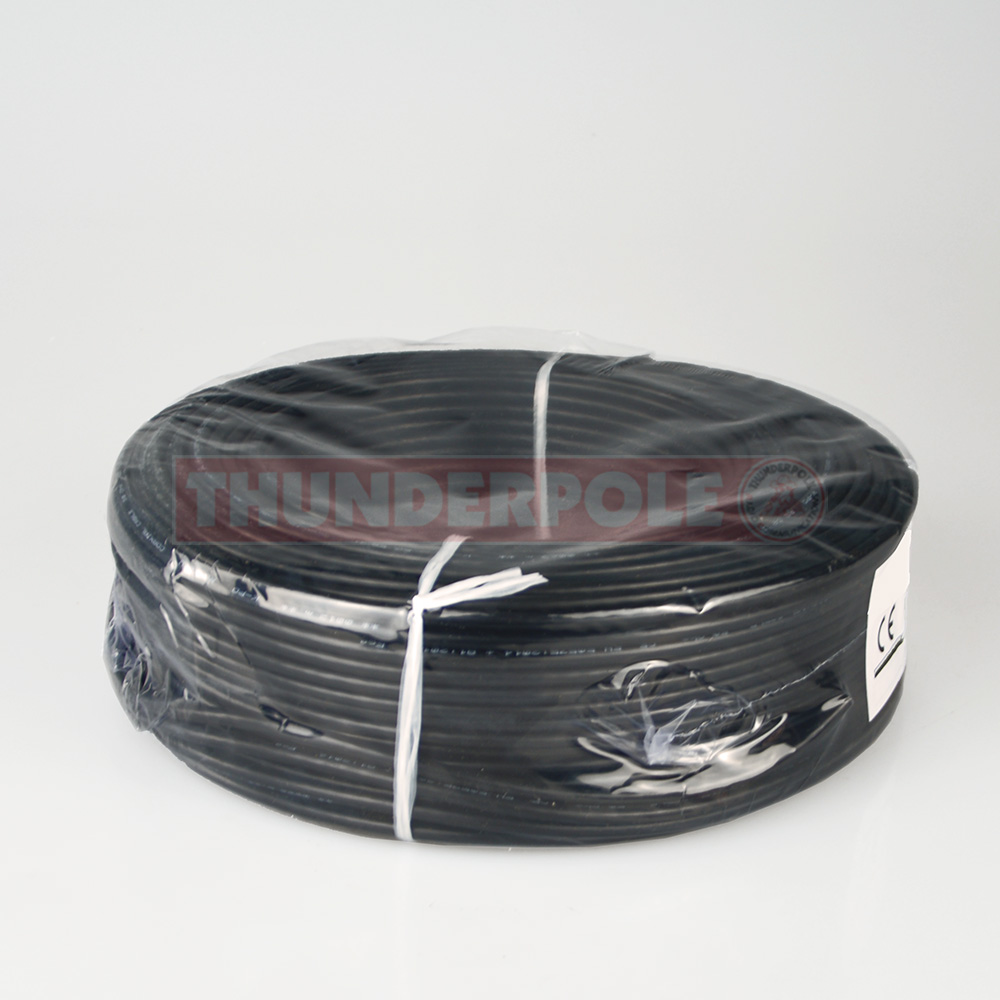

  • 100m Reel
